Description
The Qualcomm SM7435, known as the Snapdragon 7s Gen 2, is a recent upper-mid-range 5G platform used in current smartphones. Devices on this chipset can become bricked or FRP-locked after a failed update, a corrupted flash, or a reset that leaves the Google account lock active. Because newer platforms have hardened bootloaders, software recovery often fails, making ISP pinout access the practical solution. ISP connects a programmer directly to the flash storage through test pads.
Qualcomm SM7435 ISP Pinout Review

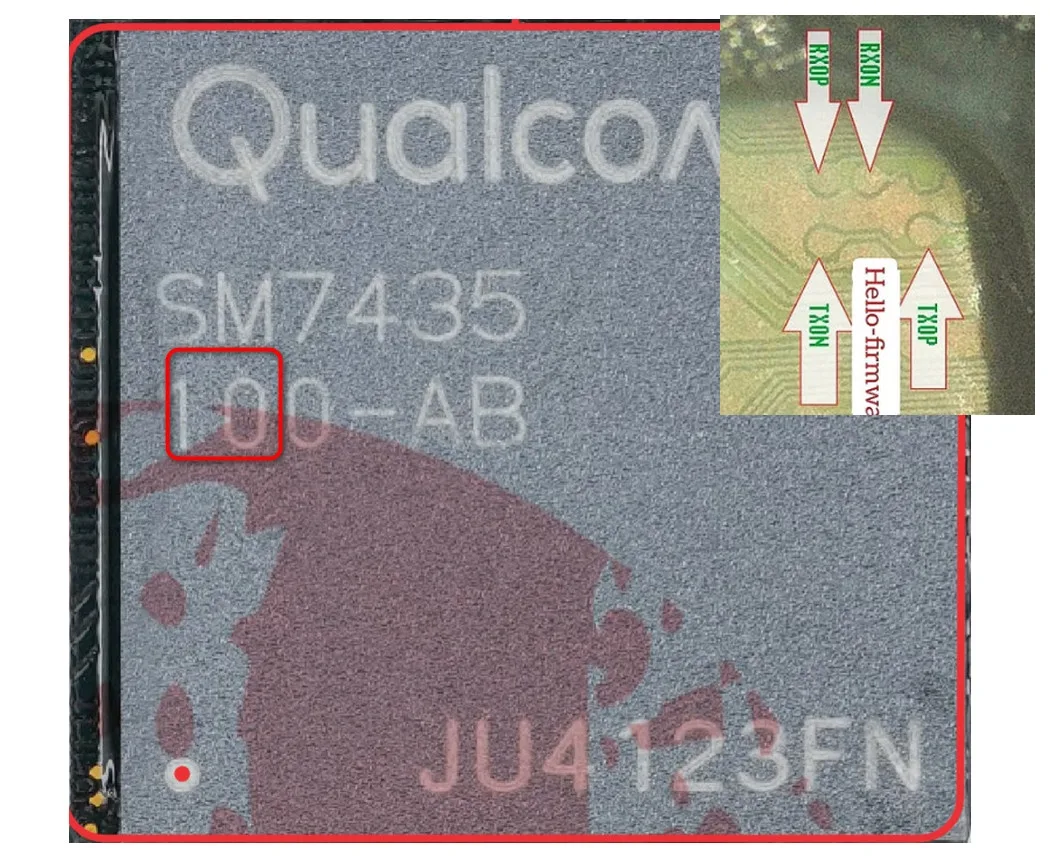

The four ISP points for the SM7435 are TX ON, TX OP, RX ON, RX OP. These serial transmit and receive lines link your programmer to the storage controller. TX ON and TX OP form the transmit pair; RX ON and RX OP form the receive pair. On this newer platform, board layouts are compact and the pads unmarked, so a verified diagram is critical. Ensure your ISP tool firmware is current and includes the SM7435 profile, since newer chipsets often require a software update for full support. Verify all four points with a multimeter before connecting.
How To Find ISP Pinout SM7435
Full disassembly is required. Remove the back cover, disconnect the battery, and extract the motherboard. Flip it to expose the flash storage chip near the center, under a shield can. Using magnification, locate the four pads for TX ON, TX OP, RX ON, and RX OP. As a recent platform, SM7435 pinout references may be limited, so a verified diagram is essential — avoid guessing on a new board. Match against landmark components, confirm continuity on each pad, then solder fine wires or seat a pogo-pin adapter.
How To Reset FRP Unlock With Dril CPU
Connect the four ISP points and power the board through the programmer only. Open your Dril CPU tool and select the Qualcomm SM7435 / Snapdragon 7s Gen 2 profile — update the tool first if needed. Once the storage controller is detected, navigate to the FRP erase section and delete the FRP partition to remove the Google lock. Confirm and run the operation, then disconnect the wires, reconnect the battery, and boot. The device should pass the FRP screen. If detection fails, verify TX/RX are not swapped and confirm tool support for this controller.
Final Words
The Qualcomm SM7435 ISP pinout provides a reliable FRP reset method for Snapdragon 7s Gen 2 devices, especially where hardened bootloaders block software recovery. Accurate identification of TX ON, TX OP, RX ON, RX OP and an updated Dril CPU tool are the keys to success. Work under ESD protection, keep the battery disconnected, and verify each pad before powering on.
