Description
The Qualcomm SM7325 — the Snapdragon 778G / 778G+ 5G — is a strong upper-mid-range 5G platform used in many premium mid-tier phones. Devices on this chipset can reach a state where software recovery fails: corrupted firmware, persistent bootloop, or an FRP lock with no account access. ISP pinout access connects a programmer directly to the flash storage via test pads, bypassing the locked boot process.

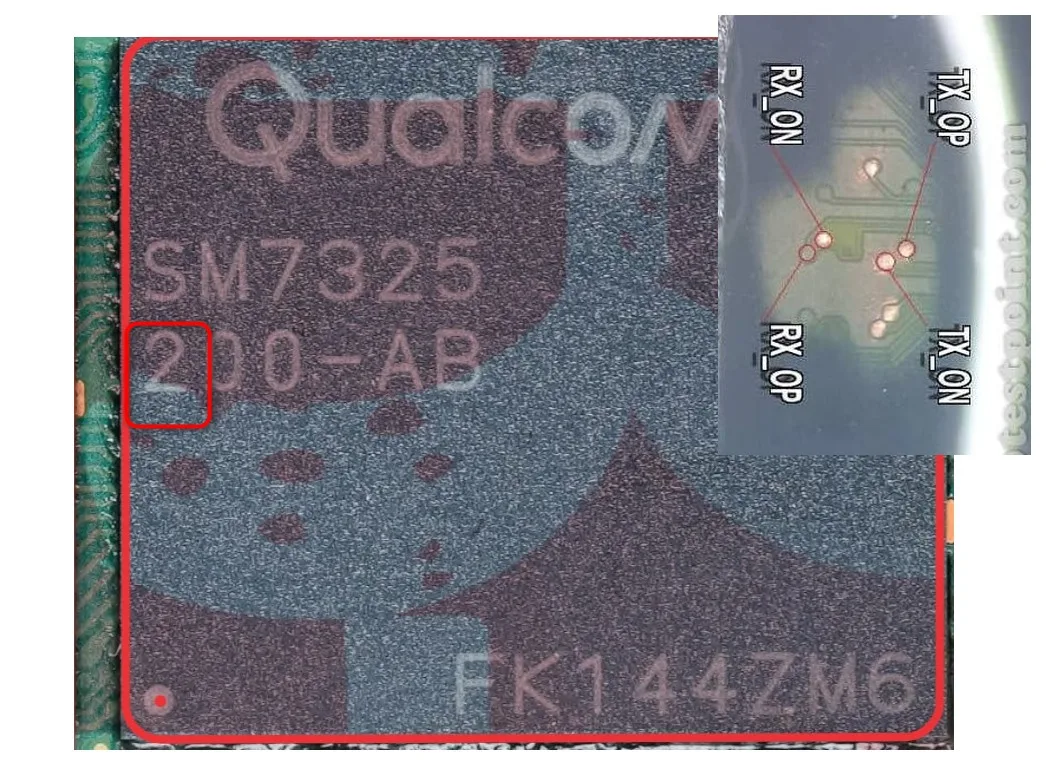

Qualcomm SM7325 ISP Pinout Review
The four ISP points for the SM7325 are TX ON, TX OP, RX ON, RX OP. These serial transmit and receive lines connect your programmer to the storage controller. TX ON and TX OP handle transmit; RX ON and RX OP handle receive. On the SM7325 board, the pads sit near the flash chip and are unmarked, so a verified diagram is required. As a premium 5G platform, SM7325 devices typically use UFS storage and have dense board layouts, so confirm interface support and use fine tools. Verify all four points with a multimeter before connecting.
How To Find ISP Pinout SM7325
Disassemble the device, disconnect the battery, and remove the motherboard. Flip it to expose the flash storage chip near the center, under a shield can. Using magnification, locate the four pads for TX ON, TX OP, RX ON, and RX OP. On the dense premium 5G board, careful orientation against landmark components is essential to avoid confusing pads. Confirm continuity on each, then solder fine wires or seat a pogo-pin adapter, taking care not to bridge adjacent points.
How To Reset FRP Unlock With Dril CPU
Connect the four ISP points and power the board through the programmer only. Open your Dril CPU tool and select the Qualcomm SM7325 / Snapdragon 778G profile. Once the storage controller is detected, navigate to the FRP erase section and delete the FRP partition to remove the Google lock. Confirm and run the operation, then disconnect the wires, reconnect the battery, and boot. The device should clear the FRP screen. If detection fails, check for a TX/RX swap and confirm the UFS interface is selected.
Final Words
The Qualcomm SM7325 ISP pinout is a reliable FRP reset method for the premium Snapdragon 778G 5G platform. Accurate identification of TX ON, TX OP, RX ON, RX OP combined with correct interface selection ensures a clean session. Use ESD protection, keep the battery disconnected, and verify all pads before powering on.
