Description
The Qualcomm SM6450, known as the Snapdragon 6 Gen 1, is a modern mid-range 5G platform used in recent smartphones. Devices on this chipset can end up bricked or FRP-locked after a failed firmware operation, a corrupted partition, or a reset that leaves the Google account lock active. Because newer platforms often have hardened bootloaders, software recovery frequently fails, making ISP pinout access the practical solution. ISP connects a programmer directly to the flash storage via test pads.
Qualcomm SM6450 ISP Pinout Review

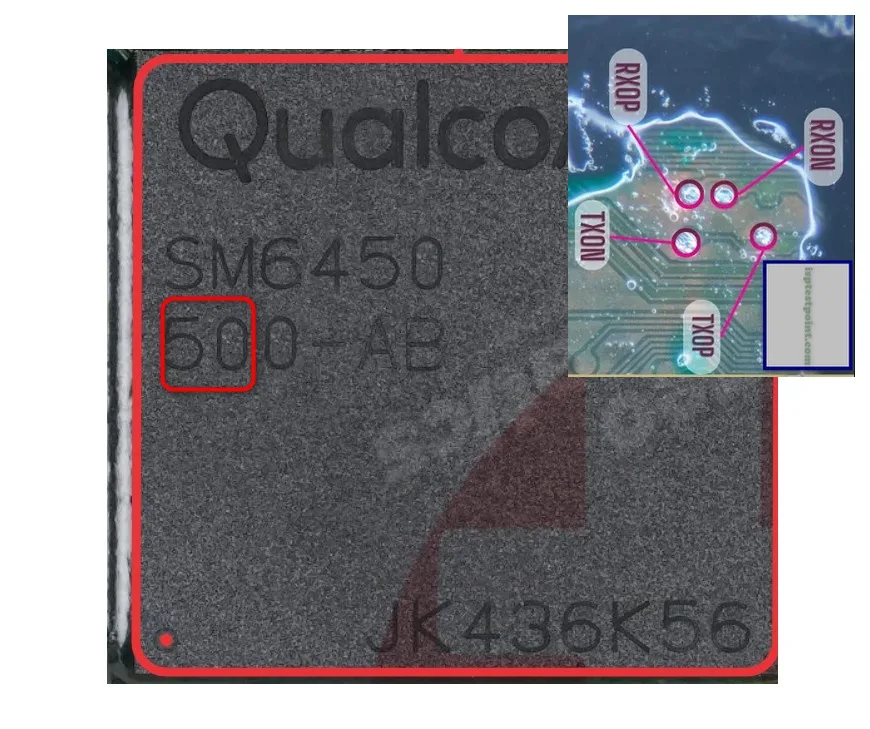

The four ISP points for the SM6450 are TX ON, TX OP, RX ON, RX OP. These serial transmit and receive lines establish the link between your programmer and the storage controller. TX ON and TX OP are the transmit pair; RX ON and RX OP are the receive pair. On this newer platform, board layouts are compact and the pads unmarked, so a verified diagram is critical. Make sure your ISP tool's firmware is up to date and includes the SM6450 profile, since newer chipsets may need a software update for full support. Verify all four points with a multimeter before connecting.
How To Find ISP Pinout SM6450
Full disassembly is required — back cover off, battery disconnected, motherboard removed and flipped. Locate the flash storage chip near the center of the board, under a shield can. Using magnification, find the four pads for TX ON, TX OP, RX ON, and RX OP. As a recent platform, SM6450 pinout references may be fewer, so a verified diagram is essential — avoid guessing on a new board. Match the diagram against landmark components, confirm continuity on each pad, then solder fine wires or seat a pogo-pin adapter.
How To Reset FRP Unlock With Dril CPU
Connect the four ISP points and power the board through the programmer only. Open your Dril CPU tool and select the Qualcomm SM6450 / Snapdragon 6 Gen 1 profile — update the tool first if the profile is missing. Once the storage controller is detected, navigate to the FRP erase section and delete the FRP partition to remove the Google lock. Confirm and run the operation, then disconnect the wires, reconnect the battery, and boot. The device should pass the FRP screen. If detection fails, verify TX/RX are not swapped and confirm tool support for this newer controller.
Final Words
The Qualcomm SM6450 ISP pinout offers a reliable FRP reset method for Snapdragon 6 Gen 1 devices, especially where hardened bootloaders block software recovery. Accurate identification of TX ON, TX OP, RX ON, RX OP and an updated Dril CPU tool are the keys to success. Work under ESD protection, keep the battery disconnected, and verify each pad before powering on.
