Description
The Qualcomm SM6375, marketed as the Snapdragon 695 5G, is a very popular mid-range 5G platform used in a wide range of current smartphones. Devices on this chipset commonly reach repair benches with dead-boot, bootloop, or FRP-lock problems that software tools cannot resolve. ISP pinout access provides the hardware-level solution by connecting a programmer directly to the flash storage through test pads.
Qualcomm SM6375 ISP Pinout Review

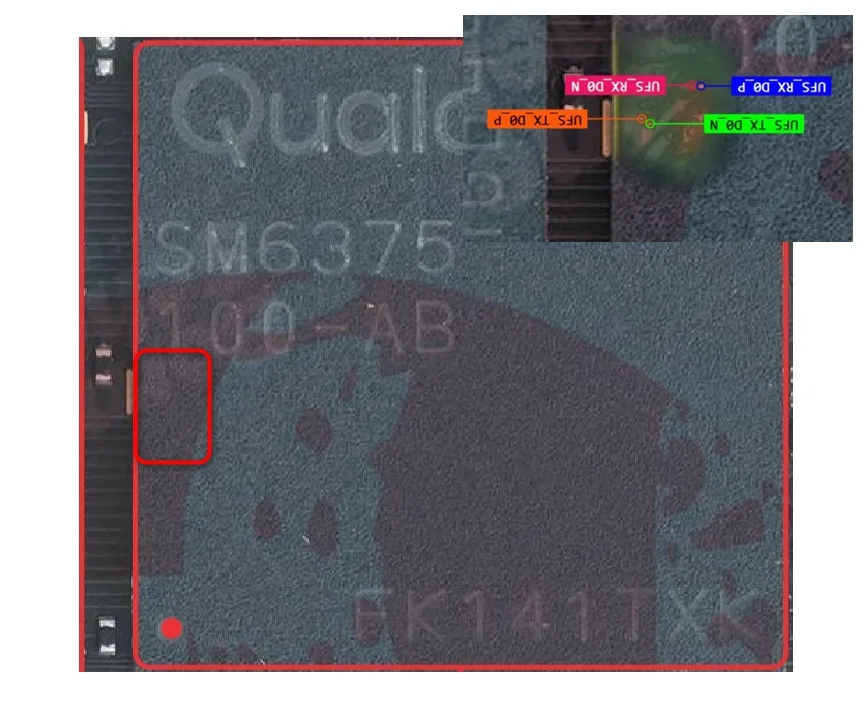

The four ISP points for the SM6375 are TX ON, TX OP, RX ON, RX OP. These serial transmit and receive lines link your programmer to the storage controller. TX ON and TX OP form the transmit pair; RX ON and RX OP form the receive pair. On the SM6375 board, these pads sit near the flash chip and are unmarked, so a verified diagram is required. As a 5G platform, the SM6375 often has a dense board layout, so the pads may be close to other components — use fine probe tips and brief soldering heat. Confirm each of the four points with a multimeter before connecting.
How To Find ISP Pinout SM6375
Disassemble the device fully, disconnect the battery, and remove the motherboard. Flip it to expose the flash storage side, near the center under a shield can. Using magnification, locate the four pads for TX ON, TX OP, RX ON, and RX OP. On the denser 5G board of the SM6375, careful orientation against landmark components is important to avoid confusing pads. Confirm continuity on each, then solder fine wires or seat a pogo-pin adapter, taking care not to bridge adjacent points.
How To Reset FRP Unlock With Dril CPU
Connect the four ISP points and power the board through the programmer only. Open your Dril CPU tool and select the Qualcomm SM6375 / Snapdragon 695 profile. Once the storage controller is detected, go to the FRP erase function and delete the FRP partition to remove the Google lock. Confirm and run the operation. After completion, disconnect the wires, reconnect the battery, and boot. The device should clear the FRP screen. If detection fails, check for a TX/RX swap and confirm a solid ground, which matters especially on 5G boards.
Final Words
The Qualcomm SM6375 ISP pinout is a reliable FRP reset method for the very popular Snapdragon 695 5G platform. Accurate identification of TX ON, TX OP, RX ON, RX OP combined with careful work on the dense 5G board ensures a clean session. Use ESD protection, keep the battery disconnected, and verify all pads before powering on.
