Description
The Qualcomm SM4450, known as the Snapdragon 4 Gen 2, is a newer entry-level 5G platform used in recent budget smartphones. As with any modern chipset, devices on the SM4450 can end up bricked or FRP-locked after a failed update, a corrupted flash, or a factory reset that leaves the Google account lock active. Because these newer platforms often have tightly locked bootloaders, software recovery frequently fails, making ISP pinout access the practical solution. ISP connects a programmer directly to the flash storage through a set of test pads, bypassing the locked boot process entirely.

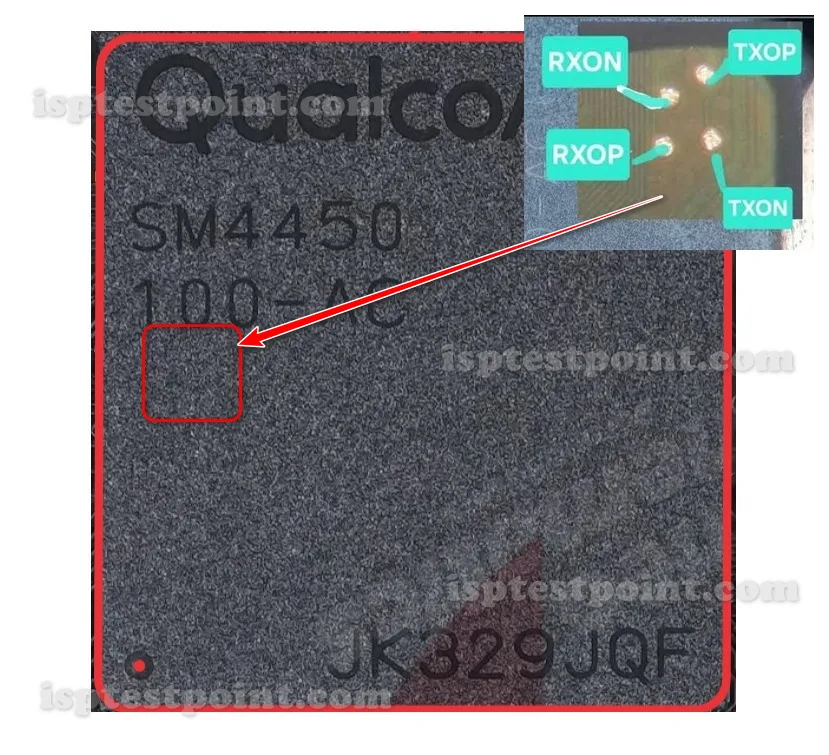

Qualcomm SM4450 ISP Pinout Review
The four ISP points for the SM4450 are TX ON, TX OP, RX ON, RX OP. These serial transmit and receive lines establish communication between your ISP programmer and the storage controller. TX ON and TX OP handle transmission; RX ON and RX OP handle reception. On this newer platform, board layouts tend to be compact and the pads unmarked, so a verified diagram is critical. Newer chipsets like the SM4450 sometimes use updated storage controllers, so make sure your ISP tool's firmware is current and includes the SM4450 profile before starting. Confirm each of the four points with a multimeter before connecting anything.
How To Find ISP Pinout SM4450
Full disassembly is required. Remove the back cover, disconnect the battery, and extract the motherboard. Flip it to expose the flash storage chip, usually near the board's center under a shield. Using a microscope or loupe, locate the four pads for TX ON, TX OP, RX ON, and RX OP. Because the SM4450 is a recent platform, community pinout references may be fewer, so a verified diagram is especially valuable — guessing on a new board is risky. Match the diagram against landmark components, confirm continuity on each pad, then solder fine wires or seat a pogo-pin adapter.
How To Reset FRP Unlock With Dril CPU
Connect the four ISP points to your programmer and power the board through the tool only. Open your Dril CPU tool and select the Qualcomm SM4450 / Snapdragon 4 Gen 2 profile — update the tool first if this profile is missing. Once the storage controller is detected, go to the FRP erase section and delete the FRP partition to remove the Google lock. Confirm and run the operation. After it finishes, disconnect the ISP wires, reconnect the battery, and boot. The device should clear the FRP screen. If the chip isn't detected, check for a TX/RX swap and confirm your tool supports this newer controller.
Final Words
The Qualcomm SM4450 ISP pinout offers a reliable FRP reset method for Snapdragon 4 Gen 2 devices, especially where locked bootloaders block software approaches. Accurate identification of TX ON, TX OP, RX ON, RX OP and an updated Dril CPU tool are the keys to success on this newer platform. Work under ESD protection, keep the battery disconnected, and verify each pad before powering on.
